Executive Summary

Architected a cloud-native business continuity and backup platform on Microsoft Azure integrating Veeam Backup for Microsoft Azure with Azure-native storage, automation, monitoring, and resilience services — delivering centralised recovery governance, policy-driven retention management, workload-aware backup orchestration, and scalable RPO/RTO enforcement across IaaS, PaaS, and storage workloads.

The architecture addresses the specific challenge of heterogeneous Azure workload protection — where IaaS virtual machines, PaaS SQL databases, and Azure File Shares each require distinct backup methodologies that native Azure Backup alone cannot govern consistently through a single operational platform.

The design demonstrates how cloud-native business continuity strategies can evolve from fragmented, workload-specific backup mechanisms into a centralised, automation-driven enterprise resilience architecture with unified governance and operational visibility.

Business Drivers

Organisations adopting cloud-native and hybrid workloads frequently find that backup and business continuity operations become fragmented across multiple protection mechanisms — each managed independently with inconsistent governance, visibility, and recovery readiness.

This architecture was designed to address the business continuity requirements of organisations where existing Azure backup approaches result in:

• Inconsistent backup coverage across Azure workload categories — IaaS, PaaS, and storage workloads protected through separate, disconnected mechanisms

• Limited centralised visibility into backup operational status — no single console providing cross-workload backup health and compliance visibility

• Manual and error-prone recovery workflows creating extended recovery times and operational risk during incidents

• Difficulty enforcing consistent enterprise RPO/RTO objectives across heterogeneous workload types with different native backup capabilities

• Fragmented governance between Azure Backup, native PaaS backup, and storage snapshot mechanisms

• Increasing compliance and audit requirements demanding documented, consistent backup governance across all workload categories

Operational Constraints

The architecture was designed to operate within the following constraints typical of mixed Azure workload environments:

• IaaS, PaaS, and storage workloads require distinct backup methodologies — a single backup mechanism cannot adequately protect all workload categories

• PaaS workloads (Azure SQL) require additional automation for granular export operations beyond native point-in-time restore capabilities

• Retention and storage costs require optimisation through tiered storage lifecycle policies aligned to backup age and workload criticality

• Recovery workflows must be operationally consistent across all workload layers — operators should not need workload-specific recovery expertise for routine restoration operations

• Authentication and orchestration must use cloud-native identity mechanisms — no hardcoded credentials or service account passwords in automation workflows

• Monitoring and reporting must serve two audiences — technical operators requiring job-level backup health visibility and governance stakeholders requiring compliance and KPI reporting

Objectives

• Provide centralised backup and recovery governance across IaaS, PaaS, and storage Azure workload categories through a unified orchestration platform

• Define and enforce specific RPO and RTO objectives per workload criticality tier

• Automate policy-based backup scheduling, retention management, and storage lifecycle governance

• Implement workload-specific protection strategies addressing the distinct backup requirements of VMs, SQL databases, and file shares

• Automate SQL export workflows compensating for native PaaS backup limitations around portable recovery formats

• Secure orchestration through Managed Identity and Service Principal authentication eliminating credential management risk

• Centralise operational visibility through Veeam Console operational dashboards and Power BI executive reporting

• Establish a tiered storage strategy optimising backup retention costs across Hot, Cool, and Archive Azure Blob tiers

Recovery Objectives by Workload Tier

These recovery objectives represent design targets. Production RPO/RTO commitments require validation through recovery testing under realistic infrastructure conditions.

Architecture Principles

• Centralised business continuity orchestration — single platform governing backup operations across all workload categories

• Workload-aware protection strategies — backup methodology matched to workload characteristics and recovery requirements

• Policy-driven governance — backup schedules, retention windows, and storage tiers defined through policies not manual configuration

• Automation-first operational workflows — routine backup operations, SQL exports, and storage lifecycle transitions executed without manual intervention

• Scalable cloud-native recovery architecture — no on-premises backup infrastructure dependencies

• Secure identity-driven integration — Managed Identity as the default authentication model for all orchestration workflows

• Separation of orchestration, storage, automation, and monitoring layers — independent failure modes for each platform component

• Recovery readiness validation — backup completeness and recovery capability must be regularly tested, not assumed

Architecture Overview

The solution is structured as a six-layer cloud-native business continuity platform integrating Azure workload protection, Veeam orchestration, tiered storage, automation, security, and centralised monitoring.

1. Infrastructure Layer — Protected Workloads

The infrastructure layer encompasses the Azure workload categories requiring centralised protection and recovery orchestration — each presenting distinct backup methodology requirements.

IaaS Workloads — Azure Virtual Machines:

• Standard Azure VMs protected through Veeam agent-based or agentless snapshot backup

• Application-consistent backup using VSS (Volume Shadow Copy Service) for Windows workloads ensuring database and application state consistency at snapshot time

• Policy-based backup frequency — Tier 1 VMs backed up hourly, Tier 2 every 4 hours, Tier 3 daily

IaaS Workloads — Azure VM Scale Sets (VMSS):

• Stateless VMSS instances protected through VM image backup and configuration-as-code — individual instance backup is unnecessary when instances are ephemeral and stateless

• Stateful VMSS instances with persistent data disks require individual instance backup through Veeam agent integration

• VMSS configuration and custom image version retained in Azure Compute Gallery for rapid scale-set rebuild

PaaS Workloads — Azure SQL Database:

• Native Azure SQL point-in-time restore (PITR) provides recovery to any point within the retention window — primary recovery mechanism for operational incidents

• BACPAC export automation through Azure Automation Runbooks provides portable backup copies outside Azure SQL native backup — critical for compliance scenarios requiring backup copies independent of the Azure SQL service

• Long-term retention (LTR) policies for regulatory compliance requiring backup retention beyond native PITR windows

Storage Workloads — Azure File Shares:

• Azure File Share snapshot-based protection for operational recovery — fast point-in-time restore without full backup restoration

• Veeam backup policy integration for Azure File Shares providing backup copy retention beyond snapshot windows

2. Backup Orchestration Layer — Veeam for Azure

Veeam Backup for Microsoft Azure (deployed as an Azure Marketplace appliance) serves as the centralised backup orchestration platform across all protected workload categories.

Why Veeam over Native Azure Backup Alone:

Azure Backup provides excellent native protection for standard VM and file share workloads but lacks the cross-workload governance console, granular file-level recovery, and orchestration flexibility required for a unified enterprise continuity platform. Veeam complements Azure Backup's native strengths with centralised orchestration and enhanced recovery capabilities — the architecture uses both where appropriate rather than replacing Azure Backup entirely.

Veeam Core Capabilities:

• Centralised backup policy management across all registered Azure workload endpoints

• Workload-specific backup orchestration with policy-driven schedule, retention, and storage tier assignment

• Automated retention enforcement — backup copies beyond retention window automatically removed without manual intervention

• Recovery workflow management — VM restore, file-level recovery, and disk-level recovery from a single console

• Cross-workload continuity governance with unified job status visibility and alert management

3. Storage Layer — Tiered Backup Repository

Backup repositories leverage Azure Blob Storage with a tiered lifecycle strategy optimising retention cost against recovery time requirements.

Storage Tier Assignment Policy:

Storage Lifecycle Automation: Azure Blob Storage lifecycle management policies automatically transition backup objects between tiers based on last-modified date — eliminating manual storage tier management and ensuring cost optimisation without operational overhead.

Storage Architecture Considerations:

• Separate storage accounts for Tier 1 and Tier 2/3 workload backups — preventing storage account throttling limits from affecting mission-critical backup operations

• Geo-redundant storage (GRS) for Tier 1 workload backup repositories — ensuring backup copies survive regional Azure outages

• Locally redundant storage (LRS) for Tier 3 workload and archive tier repositories — appropriate cost-performance trade-off for standard operational workloads

Immutable Backup Consideration: This architecture does not currently implement immutable blob storage for backup repositories. Given the ransomware threat landscape — where backup deletion is a primary attack objective — immutable storage through Azure Blob time-based retention locks should be treated as a production deployment requirement rather than a future enhancement. The absence of immutability represents a deliberate scope decision for this design study, addressed explicitly in the trade-offs section.

4. Automation Layer

Operational automation reduces manual intervention across backup operations, SQL export workflows, and infrastructure provisioning.

Azure Automation Runbooks — SQL Export Orchestration:

Native Azure SQL backup provides point-in-time restore within the Azure SQL service — but does not produce portable backup files that can be stored independently, transferred to alternative environments, or used for compliance evidence outside Azure. Azure Automation Runbooks automate BACPAC export operations to address this gap:

• Scheduled BACPAC export jobs exporting Azure SQL databases to Azure Blob Storage on defined intervals

• Managed Identity authentication for Azure Automation — no hardcoded credentials in runbook code

• Export validation confirming successful BACPAC generation before removing previous export copies

• Alert notification on export failure — ensuring operational teams are notified of BACPAC export failures before the next scheduled backup window

Deployment & Provisioning Automation:

• PowerShell and Azure CLI scripts automating Veeam appliance configuration, backup policy assignment, and repository configuration

• Runbook-driven recovery preparation — pre-staging recovery environment configuration before declared DR events

5. Security Layer

Identity and authentication governance eliminates credential management risk across all orchestration and automation workflows.

Managed Identity — Primary Authentication Model:

• Veeam Backup for Azure appliance uses Managed Identity for Azure resource access — no service principal secrets required for standard VM and storage backup operations

• Azure Automation Runbooks use System-Assigned Managed Identity for SQL export operations — eliminating stored credentials from runbook code entirely

Service Principal — Scoped Integration:

• Service Principal authentication used only where Managed Identity is not natively supported

• Service Principals scoped to minimum required permissions — Backup Contributor role for Veeam, Storage Blob Data Contributor for export destinations

• Service Principal credentials stored in Azure Key Vault — never hardcoded in scripts or automation workflows

RBAC Governance:

• Backup Operator role assigned to operational backup administrators — sufficient for day-to-day backup management without subscription-level permissions

• Backup Reader role for governance and compliance stakeholders — read-only access to backup status and reporting without operational access

• Recovery Operator role scoped to specific Recovery Services Vaults — enabling recovery operations without broader administrative access

6. Monitoring & Reporting Layer

Centralised monitoring serves two distinct audiences — technical operators requiring real-time job-level visibility and governance stakeholders requiring compliance and KPI reporting.

Veeam Console — Operational Monitoring:

• Real-time backup job status dashboard — success, warning, failure status for all configured backup policies

• Recovery point inventory — available restore points per workload with age and storage tier visibility

• Retention compliance monitoring — confirming backup copies exist within policy-defined retention windows

• Alert management — email and webhook notifications for backup job failures and policy compliance violations

Azure Monitor — Infrastructure Telemetry:

• Backup vault diagnostic logs forwarded to Log Analytics for query-based investigation of backup failures and trends

• Alert rules for backup job failures, storage capacity thresholds, and Automation Runbook failures

• Metric alerts for SQL export completion and BACPAC file size anomalies indicating potential export failures

Power BI — Executive Reporting:

• Business continuity KPI dashboard — backup coverage percentage, RPO compliance rate, recovery test results

• Storage cost trending by workload tier — FinOps visibility into backup storage spend optimisation opportunities

• Compliance reporting — backup retention policy adherence across all workload categories for governance and audit evidence

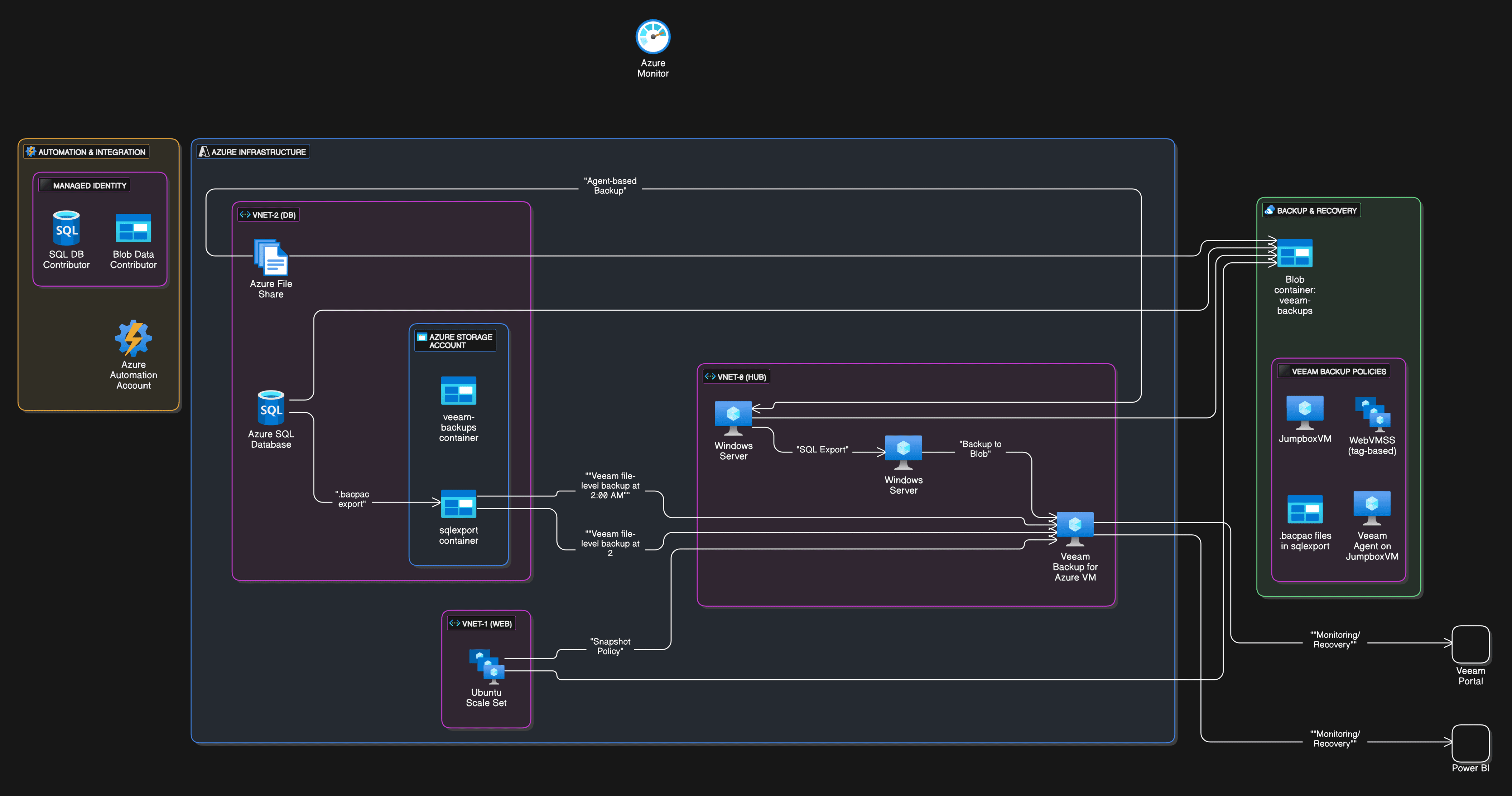

Architecture Diagram

Technologies Used

Key Challenges Addressed

Achieving consistent backup coverage across heterogeneous workload categories — addressed through Veeam for Azure as a unified orchestration platform complementing native Azure Backup, providing consistent policy governance across VMs, SQL databases, and file shares through a single management console.

Managing different protection strategies for IaaS, PaaS, and storage services — addressed through workload-specific backup policies — VM snapshot policies, SQL PITR with BACPAC export automation, and File Share snapshot integration — each matched to workload characteristics and RPO requirements.

Automating SQL export and recovery workflows — addressed through Azure Automation Runbooks executing scheduled BACPAC export operations with Managed Identity authentication, producing portable backup copies independent of Azure SQL native backup service continuity.

Centralising operational visibility across continuity operations — addressed through dual monitoring — Veeam Console for operational job-level visibility and Power BI for governance and compliance reporting — serving both technical operators and executive stakeholders.

Enforcing enterprise RPO/RTO objectives consistently — addressed through policy-driven backup frequency assignments matching backup intervals to defined RPO targets per workload criticality tier, with alert-based notification when backup jobs fail to complete within policy windows.

Securing orchestration and automation workflows — addressed through Managed Identity as the primary authentication model for Veeam and Azure Automation, with Service Principal credentials scoped to minimum permissions and stored in Azure Key Vault — eliminating hardcoded credential risk across all automation workflows.

Design Decisions & Rationale

Veeam for Azure Complementing Native Azure Backup : Azure Backup provides excellent native protection for standard VM workloads but lacks cross-workload unified governance, granular file-level recovery, and orchestration flexibility for enterprise continuity operations. Veeam for Azure adds centralised orchestration, enhanced recovery capabilities, and unified operational visibility — the two platforms are used complementarily rather than as alternatives. Azure Backup handles native workload snapshots while Veeam provides the governance and recovery layer above them.

Workload-Specific Backup Policies : A single backup policy applied uniformly across all workloads creates either over-protection of non-critical workloads (increasing cost) or under-protection of critical workloads (increasing recovery risk). Workload-specific policies matching backup frequency, retention, and storage tier to workload criticality and RPO requirements optimises both cost and recovery readiness simultaneously.

SQL BACPAC Export Automation : Native Azure SQL point-in-time restore is sufficient for operational recovery within the Azure SQL service — but does not produce portable backup files usable outside Azure or as compliance evidence independent of the Azure SQL service. BACPAC export automation addresses this gap by producing self-contained database export files that can be stored in Azure Blob Storage, transferred to alternative environments, or provided as compliance evidence without Azure SQL service dependency.

Managed Identity over Service Principal Credentials : Service principal credentials — client IDs and secrets — require rotation management, secure storage, and create exposure risk if leaked. Managed Identity eliminates credential management entirely for supported scenarios — Azure Automation and Veeam for Azure both support Managed Identity authentication, making credential-based Service Principals unnecessary for primary orchestration workflows.

Tiered Storage Lifecycle for Cost Optimisation : Storing all backup copies in Hot tier regardless of age is unnecessarily expensive — recent backups accessed frequently justify Hot tier costs, but compliance-retention copies accessed rarely should reside in Cool or Archive tier. Automated lifecycle policies transitioning backup objects between tiers based on age optimise storage costs without manual management overhead.

Power BI for Executive Reporting : Veeam Console provides excellent operational visibility for backup administrators but is not accessible or interpretable for governance stakeholders requiring compliance evidence and business continuity KPI reporting. Power BI dashboards transform backup operational data into governance-oriented reporting — bridging the gap between technical backup operations and executive business continuity oversight.

Trade-offs & Design Constraints

Immutable Backup Storage Not Currently Implemented : The current architecture does not implement Azure Blob immutable storage for backup repositories. Ransomware operations increasingly target backup infrastructure specifically — deleting or encrypting backup repositories to prevent recovery. Without immutable storage, a ransomware actor with sufficient Azure access could delete backup copies before triggering encryption. Azure Blob time-based retention locks should be implemented as a production deployment requirement — the current absence represents a deliberate scope boundary for this design study rather than an acceptable production security posture.

Veeam Appliance as Single Point of Failure : The Veeam Backup for Azure appliance is a single Azure VM — if this VM fails, backup orchestration stops until the appliance is recovered. Veeam configuration backup should be implemented to enable rapid appliance rebuild, and the appliance VM itself should be protected through Azure Backup. High-availability Veeam appliance deployment across availability zones should be evaluated for environments where backup orchestration continuity is a critical availability requirement.

BACPAC Export Performance for Large Databases : BACPAC export operations against large Azure SQL databases are CPU and I/O intensive — potentially impacting database performance during export windows. Exports should be scheduled during off-peak hours, and Azure SQL service tier should be validated against export performance requirements before production deployment. Databases exceeding several hundred gigabytes may require Azure SQL export duration assessment to confirm exports complete within defined backup windows.

Storage Account Throttling for High-Frequency Backups : Azure Blob Storage accounts have defined IOPS and throughput limits. Environments with large numbers of frequently backed-up VMs may encounter storage account throttling if all backup repositories share a single storage account. Separate storage accounts for Tier 1 and lower-tier workloads — as recommended in this architecture — mitigates this risk, but high-scale environments may require additional storage account segmentation.

Power BI Data Refresh Latency : Power BI reports reflect backup status at the time of the last data refresh — not in real time. For governance reporting purposes, scheduled daily or hourly refresh is appropriate. For operational monitoring requiring real-time backup job status visibility, the Veeam Console or Azure Monitor alerts provide more timely information than Power BI dashboards.

Cross-Region Recovery Complexity : The current architecture does not implement cross-region backup replication. A full Azure region outage would make backup repositories and Veeam appliance inaccessible simultaneously with the production workloads. For organisations with cross-region DR requirements, GRS storage replication combined with secondary-region Veeam appliance deployment should be evaluated — adding significant architectural complexity and cost.

Projected Outcomes

The architecture is designed to deliver the following operational and resilience outcomes in a production Azure environment:

• Full backup coverage across IaaS, PaaS, and storage workload categories through a unified Veeam orchestration platform

• Defined RPO and RTO targets enforced through workload-specific policy-driven backup frequency and recovery prioritisation

• Reduced manual operational effort through automated backup scheduling, retention management, storage lifecycle transitions, and SQL export workflows

• Consistent enterprise recovery readiness across heterogeneous Azure workload types

• Centralised operational visibility through Veeam Console job monitoring and Power BI governance reporting

• Optimised backup storage costs through automated Hot/Cool/Archive tiering aligned to backup age and workload criticality

• Secure orchestration through Managed Identity authentication eliminating credential management risk

• Scalable business continuity platform supporting Azure workload growth without proportional operational overhead increase

Future Evolution

• Immutable backup repository integration through Azure Blob time-based retention locks — addressing the primary ransomware recovery gap in the current architecture

• Cross-region recovery orchestration deploying secondary Veeam appliance and GRS-replicated backup repositories for full regional DR capability

• Automated recovery validation and testing — scheduled restore tests confirming backup recoverability without manual test execution

• AI-assisted backup anomaly detection identifying unusual backup size changes, unexpected failures, or abnormal retention consumption

• Infrastructure as Code deployment modules for Veeam appliance, backup policies, and storage configuration through Terraform

• Cyber recovery vault integration providing isolated recovery environment for ransomware recovery scenarios

• FinOps-driven storage lifecycle optimisation through Azure Cost Management integration and automated tier adjustment based on access frequency analytics

• Advanced compliance and resilience reporting integrating backup governance data with broader organisational GRC platforms

Key Takeaways

• Cloud business continuity platforms require centralised governance across workload categories — fragmented workload-specific backup mechanisms create visibility gaps and governance inconsistency

• Veeam for Azure and native Azure Backup are complementary platforms — Veeam adds orchestration governance and enhanced recovery capabilities above Azure Backup's native workload protection

• Workload-aware protection strategies are essential — uniform backup policies applied across heterogeneous workloads create either cost inefficiency or recovery risk

• SQL BACPAC export automation addresses a critical native PaaS backup limitation — portable backup copies independent of Azure SQL service continuity are necessary for compliance and cross-environment recovery scenarios

• Managed Identity is the correct authentication model for cloud-native backup orchestration — credential-based Service Principals should be used only where Managed Identity is not supported

• Immutable backup storage should be treated as a production requirement, not a future enhancement — ransomware targeting backup infrastructure is a primary attack pattern that immutability directly addresses

• Tiered storage lifecycle automation is essential for backup cost governance at scale — manual tier management degrades into cost inefficiency as backup volume grows
