Executive Summary

Architected a hybrid enterprise backup platform integrating Veeam Backup & Replication v12 with Azure Blob Storage and Azure Recovery Services Vault — specifically designed to address long-term compliance retention requirements, regulatory audit evidence management, and governance-oriented data protection across on-premises and cloud environments.

The architecture is differentiated from standard ransomware recovery or operational backup designs by its primary focus on compliance retention governance — implementing Grandfather-Father-Son (GFS) retention schedules, tiered Archive storage lifecycle management, immutable WORM retention enforcement, and centralised audit reporting capabilities aligned to multi-year regulatory retention obligations.

The design demonstrates how enterprise backup infrastructure can evolve beyond operational recovery into a compliance-oriented data protection platform capable of producing verifiable audit evidence, enforcing regulatory retention periods, and governing long-term backup lifecycle at scale.

Business Drivers

Organisations subject to regulatory frameworks requiring multi-year data retention face specific backup governance challenges that operational backup architectures — designed primarily for fast recovery — do not adequately address.

This architecture was designed to address the compliance retention requirements of organisations where existing backup approaches result in:

• Inability to demonstrate regulatory compliance for retention periods extending 3, 5, or 7+ years — backup systems designed for operational recovery typically retain data for days or weeks, not years

• Absence of tamper-proof retention enforcement — compliance regulators require evidence that retained data has not been modified or deleted before the mandatory retention period expires

• Fragmented audit evidence — backup systems that cannot produce structured compliance reports make regulatory audit responses operationally burdensome

• Excessive long-term retention costs — retaining all backup copies in high-performance storage tiers is economically unsustainable for multi-year compliance retention

• Inconsistent retention policy application — manual retention management creates gaps where data is deleted before regulatory periods expire or retained unnecessarily beyond required windows

• Inability to distinguish operational recovery copies from compliance retention copies — mixing short-term operational backups with long-term compliance copies creates governance complexity

Regulatory Retention Context

Retention requirements vary by jurisdiction and data category. This architecture provides the governance framework — specific retention periods must be validated against applicable regulatory obligations for each deployment.

Operational Constraints

The architecture was designed to operate within the following constraints typical of compliance-focused hybrid backup environments:

• Local backup performance must be preserved for operational recovery — compliance retention copies must not degrade fast restore capability for recent backups

• Long-term retention must be cost-efficient — storing compliance copies in high-performance storage tiers for 5–7 years is economically unsustainable

• Compliance retention copies require tamper-proof immutability — regulators may challenge the integrity of retained data if modification or deletion is technically possible during the retention window

• Existing Veeam operational workflows must continue without disruption — compliance retention extends existing backup infrastructure rather than replacing it

• Audit evidence must be producible on demand — compliance audit responses require structured reports demonstrating what data was retained, when, and for how long

• Retention policy application must be automated — manual retention management at multi-year scale is operationally unreliable and creates regulatory exposure

Objectives

• Implement Grandfather-Father-Son (GFS) retention schedules enforcing daily, weekly, monthly, and yearly backup copy governance aligned to regulatory retention periods

• Establish tamper-proof immutable retention through Azure Blob WORM policies preventing modification or deletion of compliance copies before retention period expiry

• Separate compliance retention copies from operational backup repositories — independent storage with independent governance

• Implement tiered storage lifecycle automatically transitioning compliance copies to Cool and Archive tiers as they age — optimising multi-year retention costs

• Integrate Azure Recovery Services Vault for centralised governance, retention policy management, and compliance reporting

• Produce structured audit evidence through Azure Backup Reports demonstrating retention policy compliance for regulatory review

• Preserve fast local recovery capability for recent backups through Veeam primary repository architecture

• Establish a scalable compliance retention foundation supporting future regulatory framework expansion

GFS Retention Model

The Grandfather-Father-Son (GFS) retention model is the architectural foundation of this study — providing a structured, multi-tier retention schedule that balances operational recovery granularity with long-term compliance retention governance.

GFS Governance Principles:

• Each retention tier is managed as an independent backup copy job in Veeam — daily, weekly, monthly, and yearly copies are created and managed separately with independent retention windows

• Retention boundaries are enforced automatically — Veeam removes copies beyond their defined retention window without manual intervention

• Yearly compliance copies are immutability-locked in Azure Blob Archive tier immediately upon creation — the lock period matches the regulatory retention requirement and cannot be shortened after application

• Promotion between tiers is explicit — weekly copies are not simply aged daily copies; each tier creates a fresh backup copy at its defined interval

Architecture Overview

The solution is structured as a five-layer hybrid compliance retention platform integrating on-premises Veeam operational backup, cloud compliance retention storage, GFS-governed data flow, security and immutability controls, and centralised audit reporting.

1. On-Premises Backup Layer — Operational Recovery Foundation

The on-premises layer preserves fast local recovery capability for recent backup copies — the operational foundation on which compliance retention extends.

Veeam Backup & Replication v12:

• Primary backup jobs creating daily recovery points for all protected workloads to local high-performance repository

• Local repository sized for 14-day daily retention — sufficient for operational recovery scenarios without long-term local storage growth

• Application-consistent backup using VSS for Windows workloads ensuring database and application state integrity at backup time

• Scale-out Backup Repository (SOBR) architecture enabling local repository capacity extension without reconfiguration

Local Repository Design:

• Primary repository: high-performance local storage (SSD or NVMe-backed) for recent daily copies requiring fast restore performance

• Retention: 14 days daily — balancing operational recovery granularity against local storage capacity requirements

• No long-term retention on local repository — compliance copies exist exclusively in Azure cloud storage

This separation ensures local repository performance is never compromised by long-term retention storage growth.

2. Cloud Compliance Retention Layer — Azure Storage Architecture

The cloud layer provides the compliance retention foundation — immutable, tiered, and governed through Azure-native storage services.

Azure Blob Storage — Compliance Repository:

Veeam backup copy jobs target Azure Blob Storage as the offsite compliance retention repository, with storage lifecycle policies managing tier transitions automatically.

Storage Tier Lifecycle Policy:

Azure Blob Storage lifecycle management policies automate tier transitions based on last-modified date — eliminating manual storage management across multi-year retention windows.

Azure Recovery Services Vault — Governance Layer:

• Centralised backup policy management governing retention schedules across all protected workloads

• Recovery Services Vault backup reports providing structured compliance evidence for audit responses

• Soft delete protection providing a secondary deletion protection layer beneath WORM immutability

• Cross-subscription visibility enabling centralised governance across multiple Azure subscriptions if required

3. Data Flow & Retention Separation Layer

The architecture implements a deliberate separation between operational backup workflows and compliance retention workflows — each with independent storage, independent governance, and independent failure modes.

Primary Backup Workflow — Operational Recovery:

• Daily Veeam backup jobs → local high-performance repository

• 14-day retention, fast restore performance, no cloud dependency for recent recovery

• Operational recovery completed from local repository without cloud data retrieval latency

Backup Copy Workflow — Compliance Retention:

• Independent Veeam backup copy jobs reading from local repository and writing to Azure Blob Storage

• Separate copy jobs per GFS tier — weekly, monthly, and yearly copy jobs configured with independent schedules, retention windows, and Azure Blob target containers

• Copy job scheduling offset from primary backup completion — copy jobs run after primary backup success confirmation

Why Separation Matters for Compliance: Combining operational and compliance backup in a single job creates governance ambiguity — it becomes unclear which copies satisfy compliance retention requirements and which serve operational recovery. Separate jobs produce separate audit trails for each retention tier, enabling clear compliance evidence that specific copies were created on defined dates and retained for defined periods.

4. Security & Immutability Layer

Security controls enforce tamper-proof retention integrity across compliance copies — the technical foundation for regulatory audit evidence credibility.

Azure Blob WORM Immutability — Compliance Copies:

Compliance Mode Immutability: Yearly and monthly compliance copies are protected through Azure Blob compliance-mode time-based retention locks — once applied, retention periods cannot be shortened even by subscription administrators or Microsoft support. This provides the strongest available technical guarantee that retained data will not be modified or deleted before the regulatory period expires — a requirement for regulatory frameworks that mandate tamper-evident backup retention.

Unlocked Immutability for Weekly Copies: Weekly copies use unlocked time-based retention — providing protection against accidental deletion while allowing retention period adjustment if operational requirements change. Unlocked mode is appropriate for shorter-term retention tiers where regulatory requirements are less stringent.

TLS Encryption in Transit: All Veeam backup copy job data transmitted from on-premises to Azure Blob Storage is encrypted through TLS — preventing interception or modification during transit.

Azure AD App Registration — Veeam Authentication: Veeam backup copy jobs authenticate to Azure Blob Storage through Azure AD App Registration with scoped Storage Blob Data Contributor permissions — limiting Veeam's Azure access to the specific storage accounts and containers required for backup copy operations.

RBAC Governance:

• Backup Administrator — full Veeam console and Azure backup policy management access

• Compliance Auditor — read-only access to Azure Backup Reports and Recovery Services Vault retention visibility

• Storage Administrator — storage account management without access to backup content

• No single identity holds permissions to both manage backup policies and delete retention locks simultaneously — separation of duties enforced

5. Monitoring, Reporting & Audit Evidence Layer

The monitoring layer serves the specific requirements of compliance audit evidence production — structured, verifiable, and producible on demand.

Azure Backup Reports — Compliance Evidence:

• Backup instance reports documenting which workloads are protected, under which policies, and with which retention parameters

• Recovery point reports demonstrating that specific compliance copies exist and are retained within defined storage tiers

• Policy compliance reports confirming backup jobs completed successfully within each GFS retention tier schedule

• Retention timeline reports showing the full lifecycle of compliance copies from creation through scheduled deletion

These reports provide structured audit evidence that compliance regulators can review to verify that:

• Data was backed up on the required schedule

• Backup copies were retained for the required period

• Copies were protected against modification or deletion during the retention window

Azure Log Analytics — Operational Telemetry:

• Backup copy job success and failure logging for all GFS tier copy jobs

• Storage lifecycle transition logging confirming Cool → Archive tier transitions occurred as scheduled

• Immutability lock application logging confirming compliance-mode locks were applied to yearly and monthly copies at creation time

• Alert rules for copy job failures — ensuring compliance retention gaps are detected immediately rather than discovered during audit

Veeam Console — Operational Job Monitoring:

• Real-time backup copy job status across all GFS tiers

• Repository capacity monitoring for both local and Azure Blob repositories

• Retention compliance visibility — confirming expected recovery points exist within each GFS tier

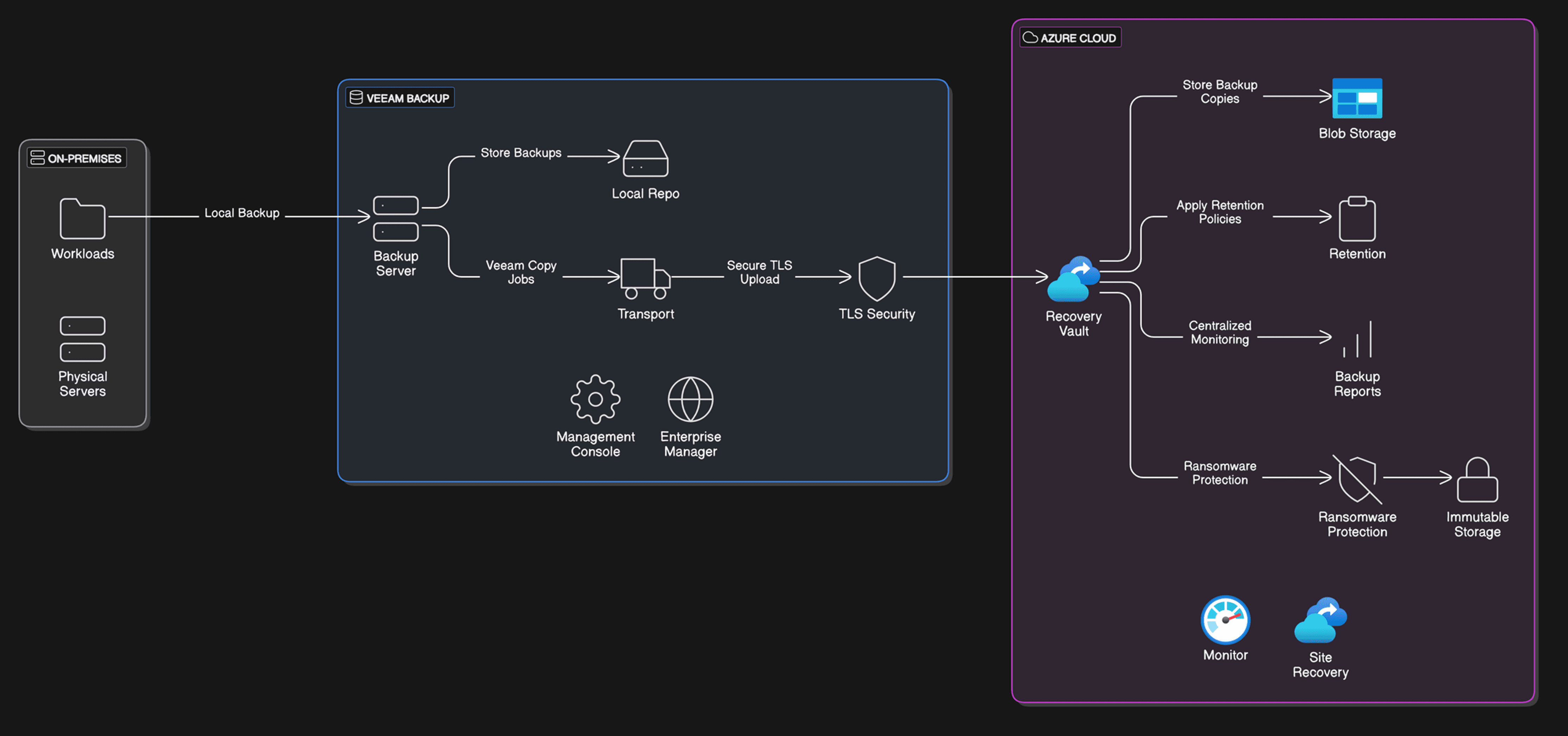

Architecture Diagram

Technologies Used

Key Challenges Addressed

Enforcing multi-year retention periods consistently without manual management — addressed through GFS retention schedules implemented as independent Veeam backup copy jobs per tier, with automated Azure Blob lifecycle policies managing storage tier transitions and Veeam managing retention window enforcement automatically.

Providing tamper-proof compliance evidence for regulatory audit — addressed through Azure Blob compliance-mode WORM locks on monthly and yearly copies — providing cryptographic-level assurance that compliance copies cannot be modified or deleted before regulatory retention periods expire, regardless of administrative access level.

Separating compliance retention from operational recovery — addressed through independent copy jobs, independent storage containers, and independent retention windows for each GFS tier — preventing operational backup management from inadvertently affecting compliance retention copies.

Managing multi-year retention costs sustainably — addressed through automated tiered storage lifecycle policies transitioning compliance copies from Cool through Cold to Archive tier as they age — reducing storage costs progressively while maintaining regulatory retention compliance.

Producing structured audit evidence on demand — addressed through Azure Backup Reports providing documented retention compliance evidence — backup schedules, recovery point existence, retention timelines, and policy compliance — in formats suitable for regulatory audit response.

Authenticating Veeam to Azure without credential exposure risk — addressed through Azure AD App Registration with scoped permissions — limiting Veeam's Azure access to required storage operations only, with credentials managed through Azure AD rather than stored in Veeam configuration.

Design Decisions & Rationale

GFS Retention over Simple Day-Count Retention : Simple day-count retention (e.g. retain for 365 days) creates storage inefficiency — retaining daily copies for a full year consumes unnecessary storage. GFS retention optimises copy frequency to retention period — daily copies for 14 days provide operational recovery granularity, weekly copies for 5 weeks provide recent compliance coverage, monthly copies for 12 months provide annual cycle coverage, and yearly copies for 7 years provide long-term regulatory compliance. Each tier uses the minimum copy frequency required for its retention purpose.

Separation of Operational and Compliance Copy Jobs : Combined backup jobs that serve both operational recovery and compliance retention create governance ambiguity — it becomes difficult to demonstrate specifically which copies satisfy which regulatory requirement. Independent copy jobs per GFS tier produce independent audit trails, enabling structured compliance evidence that specific copies were created on defined schedules and retained for defined periods.

Compliance-Mode WORM for Yearly and Monthly Copies : Unlocked immutability can be removed by administrators — providing protection against accidental deletion but not against deliberate deletion. Compliance-mode WORM locks cannot be removed by any identity before the defined retention period expires — providing the strongest technical guarantee of retention integrity required for regulatory frameworks where tamper-evident backup retention is mandated.

Archive Tier for Yearly Compliance Copies : Storing 7-year regulatory retention copies in Hot or Cool tier is economically unsustainable — the cost accumulation over the retention period significantly exceeds Archive tier pricing. Archive tier storage is appropriate for compliance copies that are accessed extremely rarely (audit requests only) with rehydration latency acceptable in a regulatory context where audit responses are not time-critical.

Azure Recovery Services Vault for Governance Integration : Veeam alone provides excellent operational backup visibility but does not produce the structured compliance reporting formats required for regulatory audit evidence. Recovery Services Vault integration provides Azure Backup Reports — structured, queryable compliance documentation that complements Veeam's operational console for audit response scenarios.

Separation of Duties in RBAC Design : No single identity should hold permissions to both manage backup policies and remove retention locks — combining these permissions creates insider threat exposure where a single compromised or malicious account could both delete backup policies and remove immutability protections simultaneously. RBAC separation ensures that compromising a backup administrator account does not enable immutability lock removal.

Trade-offs & Design Constraints

Archive Tier Rehydration Latency for Audit Responses : Yearly compliance copies stored in Azure Blob Archive tier require rehydration before access — Standard rehydration takes up to 15 hours, High Priority rehydration up to 1 hour at significantly higher cost. For regulatory audit scenarios requiring rapid production of specific retained data, rehydration latency must be factored into audit response planning. Organisations with strict audit response time requirements should evaluate Cold tier for more recent yearly copies or maintain an index of Archive content for rapid identification before rehydration.

Compliance-Mode WORM Irreversibility : Azure Blob compliance-mode time-based retention locks cannot be shortened or removed before expiry — even by Microsoft support. If retention periods are configured incorrectly (too long) before lock application, the organisation will retain data beyond its required period and incur unnecessary storage costs for the excess duration. Retention period validation against applicable regulatory requirements must occur before compliance-mode locks are applied — this decision is irreversible.

GFS Copy Job Scheduling Complexity : Managing four independent GFS copy jobs (daily, weekly, monthly, yearly) with independent schedules, retention windows, and storage targets requires careful Veeam configuration management. Job scheduling must ensure weekly and monthly copy jobs run after the primary backup job completes successfully for that period — misconfigured scheduling can result in compliance copies being created from incomplete backup data. Infrastructure as Code management of Veeam configuration is recommended for consistent and auditable GFS job configuration.

Azure AD App Registration Credential Rotation : Azure AD App Registration client secrets require periodic rotation — typically every 12–24 months. Veeam backup copy jobs will fail if App Registration credentials expire without rotation. Credential expiry monitoring through Azure AD and automated rotation workflows through Azure Key Vault should be implemented to prevent backup copy job failures caused by credential expiry — a particularly dangerous failure mode for compliance retention copies that may not be noticed immediately.

Storage Cost Accumulation Over 7-Year Retention : While Archive tier is the lowest-cost Azure storage option, 7-year retention of yearly compliance copies across multiple protected workloads accumulates meaningful storage cost over the retention lifecycle. FinOps governance should include long-term compliance storage cost projection — factoring in data volume growth, Archive tier pricing, and rehydration costs — to ensure retention architecture remains economically sustainable across the full regulatory retention period.

Projected Outcomes

The architecture is designed to deliver the following compliance and operational outcomes in a production hybrid enterprise environment:

• GFS retention schedules enforcing daily, weekly, monthly, and yearly backup copy governance aligned to regulatory retention requirements

• Tamper-proof compliance retention through Azure Blob compliance-mode WORM locks on monthly and yearly copies

• Clear separation between operational recovery copies and compliance retention copies through independent copy jobs and storage containers

• Sustainable multi-year retention cost management through automated Cool → Cold → Archive tier lifecycle transitions

• Structured audit evidence production through Azure Backup Reports demonstrating retention schedule compliance for regulatory review

• Automated retention enforcement eliminating manual management risk across multi-year retention windows

• Operational recovery capability preserved through fast local Veeam repository for recent daily copies

• Scalable compliance retention foundation supporting additional regulatory framework requirements without architectural redesign

Future Evolution

• Full disaster recovery orchestration integration extending the compliance backup foundation with Azure Site Recovery failover capability

• Immutable recovery vault expansion providing isolated recovery environments for cyber recovery scenarios

• Automated recovery validation testing — scheduled restore tests confirming compliance copy recoverability before audit scenarios require it

• AI-assisted backup anomaly detection identifying unexpected changes in backup size, frequency, or retention compliance

• Cross-region backup replication for geographic resilience of compliance retention copies beyond single-region Azure storage

• Infrastructure as Code deployment automation through Terraform for consistent, auditable GFS job configuration and storage lifecycle policy deployment

• Advanced ransomware detection analytics correlating backup anomalies with security event telemetry

• Cyber recovery isolation vault integration providing air-gapped recovery environment for highest-assurance recovery scenarios

Key Takeaways

• GFS retention is the appropriate backup model for compliance requirements — simple day-count retention creates either storage inefficiency or governance ambiguity that GFS resolves through structured tier separation

• Compliance-mode WORM immutability is the technical foundation of tamper-evident backup retention — without it, regulatory claims about retention integrity cannot be technically substantiated

• Separating operational recovery copies from compliance retention copies is essential for audit evidence clarity — combined workflows create governance ambiguity that undermines regulatory defensibility

• Archive tier storage is the economically appropriate choice for long-term compliance copies — Hot or Cool tier for 7-year retention accumulates unsustainable costs without meaningful access performance benefit for rarely-accessed regulatory copies

• Compliance-mode WORM locks are irreversible — retention period validation against regulatory requirements must occur before lock application

• Structured audit evidence through Azure Backup Reports transforms backup operational data into regulatory compliance documentation — this reporting capability should be treated as a first-class architecture requirement alongside recovery capability

• Separation of duties in RBAC design is a compliance architecture requirement — no single identity should hold permissions to both manage backup policies and remove retention protections
