Executive Summary

Architected a ransomware-resilient backup and recovery framework combining immutable cloud-native backup services, logically isolated storage, strict governance controls, and validated recovery procedures for hybrid enterprise environments.

The architecture establishes a defense-in-depth backup framework designed to resist destructive ransomware activity, insider threats, and privileged compromise scenarios — while ensuring reliable business recovery capabilities remain intact under active cyber crisis conditions.

The design integrates Azure-native immutable backup services with hybrid Veeam-based replication mechanisms, enabling tamper-resistant retention, controlled recovery operations, and continuous monitoring of high-value backup assets — treating backup infrastructure not as an operational utility but as a critical security system.

Business Drivers

Modern ransomware operations increasingly target backup infrastructure specifically — deleting or encrypting backup repositories to prevent recovery and maximise operational disruption. Traditional backup architectures relying on administrative trust boundaries and standard retention policies no longer provide sufficient protection against these destructive attack techniques.

This architecture was designed to address the backup resilience requirements of organisations managing hybrid workloads in environments where ransomware, insider threats, and privileged compromise represent credible operational risks.

Key drivers include:

• Protection of backup systems against targeted ransomware deletion and encryption attacks

• Prevention of backup tampering by compromised or malicious privileged accounts

• Reduction of operational recovery risk during active cyber incidents

• Assurance of business continuity when production environments are fully compromised

• Compliance alignment with resilience and governance frameworks including CIS Controls and NIST SP 800-34

• Establishment of validated, operationally proven recovery capabilities

Operational Constraints

The architecture was designed to operate within the following constraints typical of hybrid enterprise environments:

• Backup systems must remain continuously available and recoverable even under privileged compromise conditions

• Backup retention policies must remain tamper-resistant regardless of administrative access level

• Hybrid workloads require both cloud-native and offsite protection strategies with independent trust boundaries

• Operational teams require secure but manageable recovery workflows that function under crisis conditions

• Monitoring systems must provide visibility into destructive backup operations in real time

• Security controls must not introduce excessive operational complexity that degrades day-to-day manageability

• Architecture must balance resilience, governance, operational usability, and cost efficiency

Objectives

• Establish immutable and tamper-resistant backup storage resistant to privileged compromise

• Protect backup infrastructure against both external ransomware attacks and insider threats

• Implement defense-in-depth security controls across all backup layers

• Ensure reliable recoverability during active ransomware incidents

• Define target RTO and RPO objectives aligned to business continuity requirements

• Introduce real-time governance and monitoring across backup operations

• Validate recovery processes through controlled attack simulations rather than theoretical assumption

• Align the architecture with CIS Controls v8 and NIST SP 800-34 resilience principles

• Reduce dependency on trusted administrative access models for recovery integrity

Recovery Objectives

These recovery objectives represent design targets for the architecture scenario. Production RTO/RPO commitments would require validation through load testing and recovery simulation under realistic infrastructure conditions.

Architecture Principles

• Assume backup systems will be actively targeted — design for survivability, not just availability

• Enforce immutability at the storage layer as a non-negotiable foundational control

• Separate trust boundaries between production and recovery systems at every layer

• Apply least-privilege operational access across all backup administration functions

• Validate recovery capabilities continuously through simulation — never assume recoverability

• Maintain independent recovery paths resistant to single-point-of-compromise failure

• Monitor backup systems as critical security assets with dedicated threat visibility

• Reduce blast radius through layered isolation across storage, identity, and network boundaries

• Protect backup integrity consistently across hybrid on-premise and cloud environments

Architecture Overview

The solution is structured as a six-layer ransomware recovery platform combining immutable cloud storage, hybrid replication, governance enforcement, continuous monitoring, and operationally validated recovery procedures.

1. Immutable Backup Layer — Primary Control Plane

The primary backup layer leverages Azure Recovery Services Vault with immutability controls enforced at the vault level.

Capabilities:

• Immutable backup retention enforcement preventing modification or deletion of protected recovery points

• Soft delete protection providing a secondary recovery window against accidental or malicious deletion

• Vault Lock configuration establishing compliance-mode immutability that cannot be disabled even by subscription administrators

• Platform-enforced retention policies resistant to privileged override

• Tamper-resistant preservation of recovery points across the retention window

This layer ensures backup data integrity is maintained even when production environments and privileged administrative accounts are fully compromised.

2. Offsite & Logical Air-Gap Layer

Hybrid backup replication is implemented using Veeam Backup & Replication v12 integrated with Azure Blob Storage, providing an independent recovery path outside the primary backup control plane.

Capabilities:

• Offsite backup copy jobs replicating critical workloads to logically isolated cloud storage

• Immutable object storage enforcing WORM retention at the blob level

• Logical isolation from production environments through separate subscription and access boundaries

• Independent recovery paths survivable under primary environment compromise

• Reduced dependency on a single backup platform or trust boundary

Logical air-gap architecture provides meaningful recovery separation without the operational complexity and cost of physical air-gap infrastructure — a practical trade-off for most enterprise environments.

3. Storage Protection Layer

The storage architecture leverages immutable Azure Blob containers with time-based retention locks enforced at the container level.

Capabilities:

• Immutable blob storage with WORM policy enforcement

• Time-based retention locks preventing overwrite or deletion during the defined retention window

• Tiered storage management (Hot, Cool, Archive) for cost-optimised long-term preservation

• Protection against overwrite, deletion, and metadata modification operations

• Durable preservation of recovery assets across defined retention periods

4. Access Control & Governance Layer

Governance and access controls are implemented through Azure-native identity and resource protection mechanisms, enforcing least-privilege boundaries across all backup operations.

Controls:

• RBAC-based least-privilege access separating backup operator, recovery operator, and administrator roles

• Separation of duties preventing any single identity from both managing and deleting backup resources

• Azure Resource Locks applied to critical vault and storage resources preventing accidental or malicious deletion

• Restricted administrative exposure through Privileged Identity Management (PIM) for just-in-time access

• Controlled operational access boundaries enforced through conditional access policies

This layer significantly reduces insider threat exposure and privilege escalation risk — addressing the reality that many ransomware incidents involve compromised administrative credentials.

5. Monitoring & Detection Layer

Continuous monitoring and threat visibility are implemented through Azure Monitor and Activity Log integration, treating backup infrastructure as a high-value security monitoring target.

Detection capabilities:

• Backup deletion attempts — alerted in real time

• Retention policy modification attempts

• Vault configuration changes and Vault Lock disablement attempts

• Suspicious restore activities outside normal operational patterns

• Unauthorised administrative operations against backup resources

• Anomalous access patterns to recovery storage

Early detection of targeted backup attacks provides the response window necessary to prevent full recovery infrastructure compromise before ransomware deployment completes.

6. Recovery & Validation Layer

The recovery architecture incorporates validated restoration workflows deliberately isolated from potentially compromised production environments.

Capabilities:

• VM-level restore operations to clean, isolated recovery environments

• Structured recovery runbooks defining step-by-step restoration procedures under crisis conditions

• Isolated recovery testing environments preventing contamination of production during validation

• Controlled ransomware simulation exercises validating recovery integrity under realistic attack conditions

• Recovery validation workflows confirming RTO and RPO targets are achievable under real operational conditions

The critical design principle here is proven recoverability over assumed availability — a backup that has never been tested under realistic conditions cannot be trusted during an actual incident.

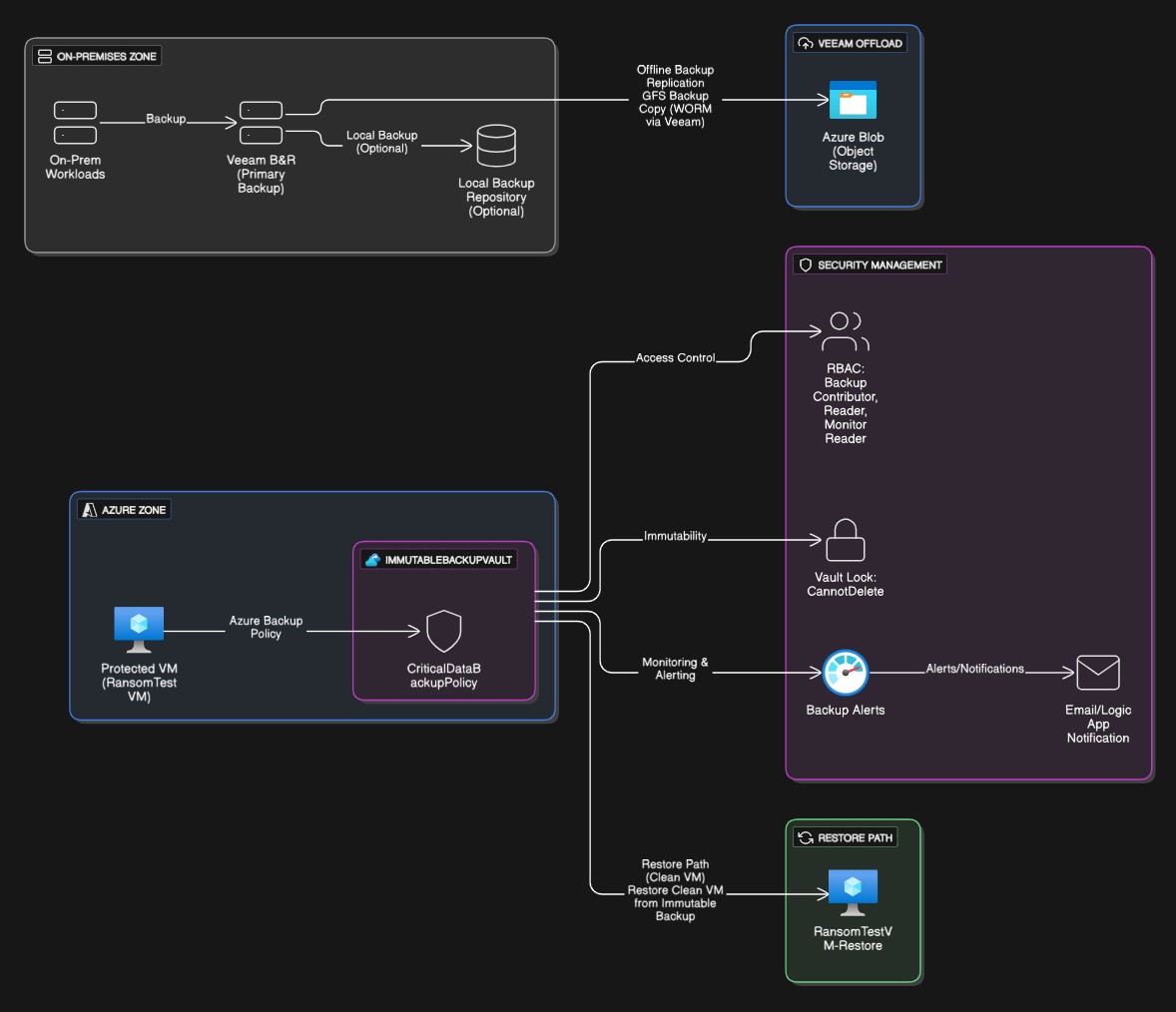

Architecture Diagram

Technologies Used

Key Challenges Addressed

Protecting backups under privileged compromise conditions — addressed through platform-enforced Vault Lock immutability that cannot be overridden by any administrative identity, including subscription owners.

Implementing immutability across hybrid infrastructure layers — addressed through coordinated immutability controls at both the Azure Recovery Services Vault level and Azure Blob Storage WORM layer, covering cloud-native and Veeam-replicated workloads independently.

Maintaining operational usability while strengthening security controls — addressed through role separation that preserves operational workflows for backup operators while restricting destructive administrative capabilities to tightly governed privileged roles.

Establishing logical isolation without excessive infrastructure complexity — addressed through subscription-level separation and independent storage access boundaries rather than physically isolated infrastructure.

Validating recovery operations under realistic attack conditions — addressed through controlled ransomware simulation exercises that verify restoration workflows function correctly from immutable recovery points under compromised environment conditions.

Monitoring backup infrastructure for targeted malicious activity — addressed through dedicated Azure Monitor alerting on backup-specific destructive operations, treating the backup control plane as a critical security monitoring domain.

Design Decisions & Rationale

Immutability as a Foundational Security Control : Immutability was implemented at the storage layer — not the application layer — to ensure backup integrity remains protected even when administrative credentials are fully compromised. Application-layer controls can be bypassed by privileged attackers; storage-layer immutability enforced by the cloud platform cannot.

Hybrid Architecture — Azure Recovery Services Vault and Veeam : Combining Azure-native backup services with Veeam replication eliminates single-platform dependency. If the primary Azure backup control plane is targeted, independently replicated Veeam copies in logically isolated storage provide a survivable recovery path. Platform diversity is a meaningful resilience principle in ransomware scenarios.

Logical Air-Gap over Physical Air-Gap : Physical air-gap infrastructure (tape, offline media) provides strong isolation but introduces significant operational complexity, cost, and recovery time. Cloud-based logical isolation through subscription separation and WORM-enforced storage achieves meaningful trust boundary separation at significantly lower operational overhead — an appropriate trade-off for most enterprise recovery requirements.

Least-Privilege Governance and Role Separation : Separating backup operator, recovery operator, and administrator roles ensures no single compromised identity can both access and destroy backup resources. This addresses the increasingly common attack pattern of compromising backup administrator accounts specifically to delete recovery points before ransomware deployment.

Treating Backup Infrastructure as a Security Asset : Backup systems are consistently undermonitored relative to their criticality. Applying dedicated threat detection, alerting, and governance to backup infrastructure — equivalent to production security monitoring — reflects the reality that backup systems are now primary ransomware targets.

Recovery Validation Through Controlled Simulation : Recovery capabilities that have never been tested under realistic conditions cannot be relied upon during actual incidents. Controlled ransomware simulation exercises — restoring from immutable recovery points into isolated environments — validate that recovery workflows function correctly before they are needed under crisis pressure.

Trade-offs & Design Constraints

Cost Implications of Dual-Platform Architecture : Operating both Azure Recovery Services Vault and Veeam Backup & Replication introduces licensing and storage cost overhead compared to a single-platform approach. In a production environment, this cost must be justified against the recovery resilience improvement achieved — particularly the elimination of single-platform dependency. For most organisations processing business-critical workloads, the cost differential is manageable relative to the financial exposure of a failed ransomware recovery.

Vault Lock Irreversibility : Azure Recovery Services Vault Lock in compliance mode cannot be disabled once applied — even by Microsoft support. This provides the strongest available immutability guarantee but requires careful planning of retention policies before enablement. Incorrectly configured retention periods cannot be shortened after Vault Lock is applied, creating potential cost and storage management implications over long retention windows.

Logical vs. Physical Isolation : Logical air-gap architecture provides meaningful trust boundary separation but is not equivalent to physical isolation. A sufficiently sophisticated attacker with access to Azure subscription management could theoretically target logically isolated storage. For organisations facing advanced persistent threat (APT) actors, physical offline backup copies may be required as an additional layer beyond this architecture.

Recovery Time Under Large-Scale Compromise : Restoring large VM workloads from immutable cloud storage across degraded or compromised network infrastructure may extend actual recovery times beyond theoretical RTO targets. Recovery runbooks should account for network bandwidth constraints and prioritise restoration sequencing to ensure mission-critical Tier 1 workloads recover within defined objectives before Tier 2 and Tier 3 systems.

Projected Outcomes

The architecture is designed to deliver the following operational and security outcomes in a production enterprise environment:

• Tamper-resistant backup retention maintained even under full administrative compromise

• Elimination of backup deletion risk through platform-enforced immutability at storage layer

• Independent recovery path survivable under primary environment ransomware compromise

• Validated recovery capability confirmed through controlled ransomware simulation exercises

• Reduced recovery uncertainty through operationally tested restoration workflows

• Strengthened governance and operational oversight across all backup operations

• Enhanced protection against both external ransomware actors and insider threats

• Improved audit readiness and compliance alignment with CIS Controls v8 and NIST SP 800-34

• Reusable ransomware recovery architecture blueprint applicable across hybrid enterprise environments

Future Evolution

• Integration with dedicated cyber recovery vault architectures for highest-assurance isolation

• Automated anomaly detection using Azure Monitor behavioural analytics for early ransomware indicator identification

• Immutable backup orchestration through Infrastructure as Code (Terraform/Bicep) for consistent, auditable deployment

• Advanced SOAR integration enabling automated response workflows triggered by backup deletion attempts

• Cross-region immutable recovery replication for geographic resilience and regulatory data residency compliance

• Secure isolated recovery environments with pre-staged clean infrastructure for accelerated restoration

• Expanded compliance reporting dashboards for continuous CIS and NIST governance visibility

• AI-assisted recovery validation and restoration sequencing optimisation

Key Takeaways

• Backup infrastructure must be treated as a critical security system — not an operational utility — and monitored accordingly

• Immutability enforced at the storage layer is the most reliable protection against ransomware-driven backup destruction

• Recovery capabilities must be continuously validated through simulation — assumed recoverability is not operational resilience

• Effective ransomware resilience requires layered protection across storage, identity, monitoring, and governance simultaneously

• Hybrid recovery architectures with independent trust boundaries improve survivability during large-scale compromise scenarios

• Logical air-gap architecture provides meaningful resilience at lower operational cost than physical isolation for most enterprise requirements

• Role separation and least-privilege governance are essential controls — compromised backup administrator credentials are a primary ransomware attack vector
