Executive Summary

Architected a fully automated Infrastructure-as-Code and CI/CD deployment platform on Microsoft Azure using Terraform, Azure DevOps YAML pipelines, and GitOps operational principles — standardising infrastructure provisioning across development, staging, and production environments while eliminating configuration drift, strengthening deployment governance, and establishing a scalable and audit-ready cloud operations model.

The platform integrates modular Terraform architecture, Azure Storage remote state with locking, multi-stage Azure DevOps pipelines with approval-gated production deployments, Azure Key Vault secret management, Azure Policy compliance enforcement, and centralised observability through Azure Monitor, Log Analytics, and Grafana.

The design demonstrates how Infrastructure-as-Code and CI/CD practices can transform manual, error-prone cloud infrastructure operations into controlled, repeatable, and auditable engineering workflows — treating infrastructure delivery with the same engineering rigour applied to application software delivery.

Business Drivers

Manual cloud infrastructure management across multiple environments introduces governance and consistency challenges that compound as team size, environment count, and infrastructure complexity grow. Configuration drift — where environments that should be identical diverge through accumulated manual changes — is the most common operational consequence of manual infrastructure management.

This architecture was designed to address the infrastructure automation requirements of organisations where existing practices result in:

• Configuration drift between development, staging, and production environments — manual changes applied to one environment not replicated to others, creating deployment-time surprises

• Slow and error-prone provisioning cycles — manual Azure portal deployments requiring significant engineer time and producing inconsistent results

• Security misconfigurations caused by manual changes — no automated validation preventing insecure resource configurations from reaching production

• Limited auditability of infrastructure changes — no version-controlled history of what was deployed, when, and by whom

• Concurrent deployment conflicts — multiple team members deploying infrastructure simultaneously causing state corruption

• Production deployment risk from ungoverned change — no approval gate preventing unreviewed infrastructure changes from reaching production environments

Operational Constraints

The architecture was designed to operate within the following constraints typical of enterprise multi-team Azure environments:

• Multiple environments (development, staging, production) require strict configuration consistency — environment-specific values must be parameterised, not hardcoded

• Infrastructure provisioning must be automated without reducing governance controls — speed cannot come at the expense of change approval and compliance validation

• Secrets management must be centralised — no credentials hardcoded in Terraform code, pipeline variables, or repository files

• Team-based deployments require concurrency-safe state management — simultaneous deployments must not corrupt shared Terraform state

• Terraform modules must be reusable without excessive abstraction — over-engineered modules become harder to maintain than the problems they solve

• Production deployments must require explicit approval — automated deployment to production without human review is not acceptable for enterprise governance

• Infrastructure changes must produce auditable deployment history — compliance and incident investigation require traceable change records

Objectives

• Standardise infrastructure provisioning using modular, parameterised Terraform across all environments

• Automate infrastructure deployment through multi-stage Azure DevOps YAML pipelines

• Enforce deployment consistency through GitOps — Git repository as the single source of truth for infrastructure state

• Implement approval-gated production deployments balancing automation speed with governance requirements

• Centralise secret management through Azure Key Vault integration — no credentials in pipeline variables or Terraform code

• Enforce infrastructure compliance through Azure Policy preventing deployment of non-compliant resources

• Establish concurrency-safe remote state management through Azure Storage with lease-based locking

• Create comprehensive deployment audit trail through Azure DevOps pipeline history and Git commit records

• Centralise operational monitoring through Azure Monitor, Log Analytics, and Grafana dashboards

Architecture Principles

• Infrastructure as Code as the operational standard — no manual portal-based resource creation in governed environments

• GitOps-driven governance — Git pull request review and merge as the change approval mechanism for infrastructure modifications

• Immutable and repeatable deployments — the same Terraform code with the same variable values produces identical infrastructure every time

• Modular infrastructure components — each infrastructure domain encapsulated in an independent, testable, versionable module

• Strict environment separation — development, staging, and production have isolated state, isolated service connections, and isolated variable groups

• Automated validation before deployment — syntax validation, security scanning, and plan review before any infrastructure change is applied

• Secure-by-default pipeline architecture — no secrets in code, no hardcoded credentials, no overprivileged service connections

• Policy-driven compliance — Azure Policy prevents non-compliant resource deployment independent of Terraform code quality

• Centralised observability — infrastructure health and deployment events visible through unified monitoring platform

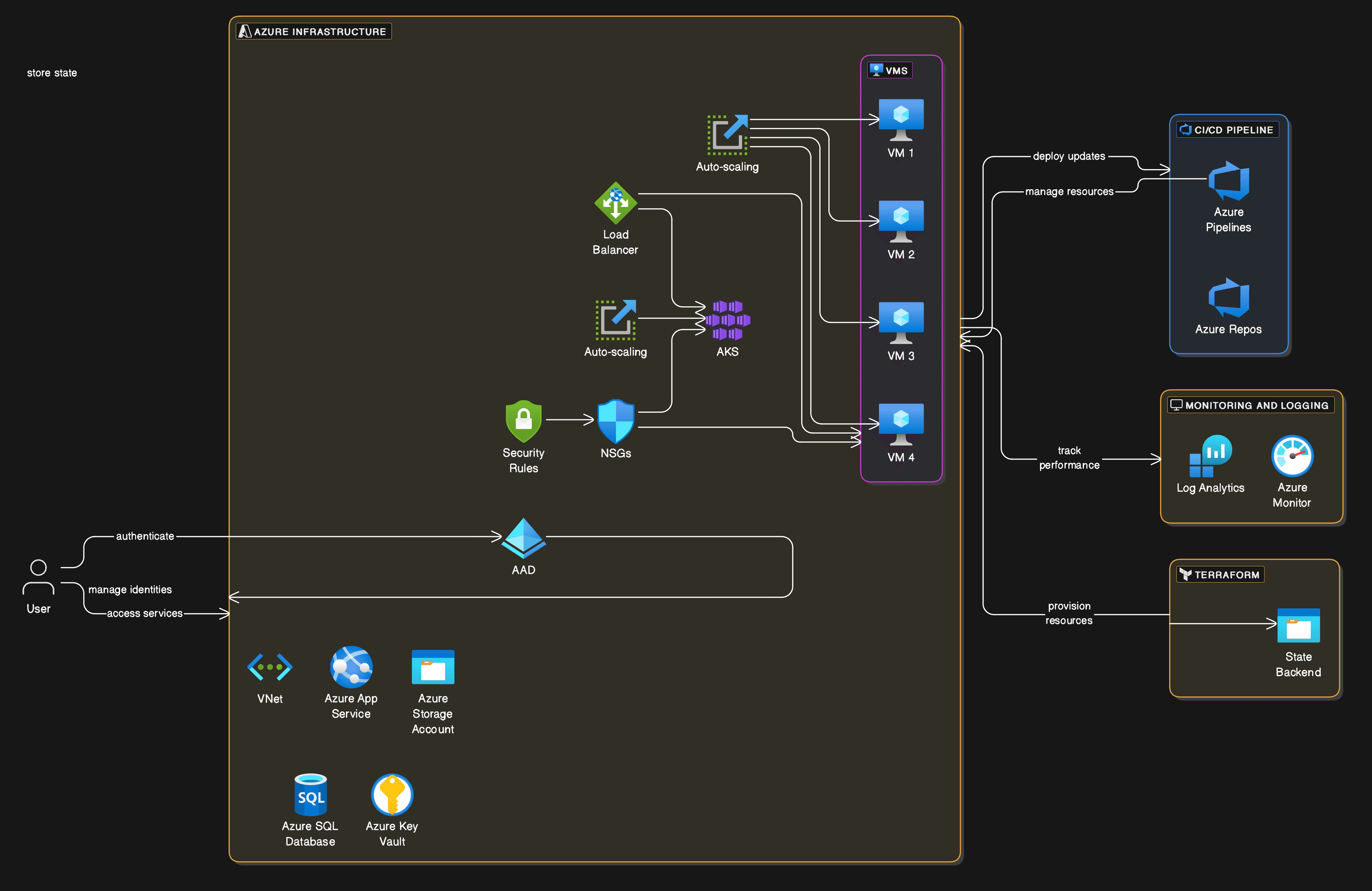

Architecture Overview

The solution is structured as a five-layer GitOps-driven infrastructure automation platform integrating IaC definition, CI/CD orchestration, state management, security and governance, and operational monitoring.

1. Infrastructure-as-Code Layer — Terraform

Terraform serves as the foundational infrastructure definition framework — all Azure resources defined declaratively in HCL with no manual portal-based provisioning in governed environments.

Modular Terraform Architecture:

├── environments/
│   ├── dev/
│   │   ├── main.tf          # Environment root module
│   │   ├── variables.tf     # Environment input variables
│   │   ├── terraform.tfvars # Dev-specific variable values
│   │   └── backend.tf       # Dev state backend configuration
│   ├── staging/
│   │   └── ...              # Identical structure, staging values
│   └── prod/
│       └── ...              # Identical structure, prod values
└── modules/
    ├── network/             # VNet, subnets, NSGs, peering
    ├── compute/             # VMs, VMSS, load balancers
    ├── database/            # Azure SQL, private endpoints
    ├── security/            # Key Vault, Managed Identity, RBAC
    ├── monitoring/          # Log Analytics, diagnostic settings
    └── aks/                 # AKS cluster, node pools

├── environments/
│   ├── dev/
│   │   ├── main.tf          # Environment root module
│   │   ├── variables.tf     # Environment input variables
│   │   ├── terraform.tfvars # Dev-specific variable values
│   │   └── backend.tf       # Dev state backend configuration
│   ├── staging/
│   │   └── ...              # Identical structure, staging values
│   └── prod/
│       └── ...              # Identical structure, prod values
└── modules/
    ├── network/             # VNet, subnets, NSGs, peering
    ├── compute/             # VMs, VMSS, load balancers
    ├── database/            # Azure SQL, private endpoints
    ├── security/            # Key Vault, Managed Identity, RBAC
    ├── monitoring/          # Log Analytics, diagnostic settings
    └── aks/                 # AKS cluster, node pools

├── environments/
│   ├── dev/
│   │   ├── main.tf          # Environment root module
│   │   ├── variables.tf     # Environment input variables
│   │   ├── terraform.tfvars # Dev-specific variable values
│   │   └── backend.tf       # Dev state backend configuration
│   ├── staging/
│   │   └── ...              # Identical structure, staging values
│   └── prod/
│       └── ...              # Identical structure, prod values
└── modules/
    ├── network/             # VNet, subnets, NSGs, peering
    ├── compute/             # VMs, VMSS, load balancers
    ├── database/            # Azure SQL, private endpoints
    ├── security/            # Key Vault, Managed Identity, RBAC
    ├── monitoring/          # Log Analytics, diagnostic settings
    └── aks/                 # AKS cluster, node pools

Module Design Standards:

• Input variables for all environment-specific values — no hardcoded resource names, SKUs, or region values within modules

• Output values exposing resource IDs and connection details required by dependent modules

• Resource naming convention enforced through variables.tf local values — consistent naming across environments

• Module versioning through Git tags — environments pin to specific module versions through source references

Environment Separation Strategy — Separate State Files over Workspaces:

Terraform Workspaces are used here for environment separation with important caveats acknowledged. The alternative — separate state files per environment directory — is the architecturally preferred model for enterprise environments:

For this architecture, separate environment directories with independent backend configurations are used — providing full isolation between environment state files and preventing accidental cross-environment operations that workspace-based approaches risk.

2. CI/CD Orchestration Layer — Azure DevOps

Azure DevOps YAML pipelines automate the full infrastructure deployment lifecycle — from code commit through validation, planning, approval, and deployment execution.

Branch Strategy:

main          → Production deployments (approval required)
staging       → Staging deployments (approval required)
develop       → Development deployments (automated)
feature/*     → Pull request validation only (no deployment)

main          → Production deployments (approval required)
staging       → Staging deployments (approval required)
develop       → Development deployments (automated)
feature/*     → Pull request validation only (no deployment)

main          → Production deployments (approval required)
staging       → Staging deployments (approval required)
develop       → Development deployments (automated)
feature/*     → Pull request validation only (no deployment)

Pipeline Stage Design:

yaml

stages:
  - stage: Validate
    jobs:
      - job: TerraformValidate
        steps:
          - task: TerraformInstaller
          - script: terraform init -backend=false
          - script: terraform validate
          - script: tfsec .              # Security scanning
          - script: checkov -d .         # Compliance scanning

  - stage: Plan
    dependsOn: Validate
    jobs:
      - job: TerraformPlan
        steps:
          - script: terraform init
          - script: terraform plan -out=tfplan
          - publish: tfplan              # Publish plan artifact

  - stage: Approve
    dependsOn: Plan
    condition: and(succeeded(), eq(variables['Build.SourceBranch'], 'refs/heads/main'))
    jobs:
      - deployment: ManualApproval
        environment: production         # Environment with approval gate configured

  - stage: Apply
    dependsOn: Approve
    jobs:
      - job: TerraformApply
        steps:
          - download: tfplan
          - script

stages:
  - stage: Validate
    jobs:
      - job: TerraformValidate
        steps:
          - task: TerraformInstaller
          - script: terraform init -backend=false
          - script: terraform validate
          - script: tfsec .              # Security scanning
          - script: checkov -d .         # Compliance scanning

  - stage: Plan
    dependsOn: Validate
    jobs:
      - job: TerraformPlan
        steps:
          - script: terraform init
          - script: terraform plan -out=tfplan
          - publish: tfplan              # Publish plan artifact

  - stage: Approve
    dependsOn: Plan
    condition: and(succeeded(), eq(variables['Build.SourceBranch'], 'refs/heads/main'))
    jobs:
      - deployment: ManualApproval
        environment: production         # Environment with approval gate configured

  - stage: Apply
    dependsOn: Approve
    jobs:
      - job: TerraformApply
        steps:
          - download: tfplan
          - script

stages:
  - stage: Validate
    jobs:
      - job: TerraformValidate
        steps:
          - task: TerraformInstaller
          - script: terraform init -backend=false
          - script: terraform validate
          - script: tfsec .              # Security scanning
          - script: checkov -d .         # Compliance scanning

  - stage: Plan
    dependsOn: Validate
    jobs:
      - job: TerraformPlan
        steps:
          - script: terraform init
          - script: terraform plan -out=tfplan
          - publish: tfplan              # Publish plan artifact

  - stage: Approve
    dependsOn: Plan
    condition: and(succeeded(), eq(variables['Build.SourceBranch'], 'refs/heads/main'))
    jobs:
      - deployment: ManualApproval
        environment: production         # Environment with approval gate configured

  - stage: Apply
    dependsOn: Approve
    jobs:
      - job: TerraformApply
        steps:
          - download: tfplan
          - script

Environment-Specific Pipeline Configuration:

Security Scanning Integration:

• tfsec static analysis scanning Terraform code for security misconfigurations before planning

• checkov compliance scanning validating Terraform resources against CIS Azure benchmark controls

• Pipeline fails on critical security findings — preventing deployment of resources with known security issues

Artifact Passing Between Stages: The terraform plan output is published as a pipeline artifact in the Plan stage and downloaded in the Apply stage — ensuring the applied plan is identical to the reviewed plan. This prevents plan-to-apply drift where a new plan might produce different changes than the one reviewed during approval.

3. State Management Layer

Terraform remote state management leverages Azure Storage — providing concurrency-safe, collaborative, and auditable state governance.

State Backend Architecture:

hcl

terraform {
  backend "azurerm" {
    resource_group_name  = "terraform-state-rg"
    storage_account_name = "tfstate${environment}"
    container_name       = "tfstate"
    key                  = "infrastructure.tfstate"
  }
}

terraform {
  backend "azurerm" {
    resource_group_name  = "terraform-state-rg"
    storage_account_name = "tfstate${environment}"
    container_name       = "tfstate"
    key                  = "infrastructure.tfstate"
  }
}

terraform {
  backend "azurerm" {
    resource_group_name  = "terraform-state-rg"
    storage_account_name = "tfstate${environment}"
    container_name       = "tfstate"
    key                  = "infrastructure.tfstate"
  }
}

State Security Controls:

• Separate storage accounts per environment — production state cannot be accessed by development service connections

• Storage account access restricted through Azure RBAC — only authorised service principals and administrators can read or modify state

• Storage account versioning enabled — accidental state corruption recoverable from previous state versions

• Soft delete enabled — deleted state files recoverable within configured retention window

• State encryption at rest through Azure Storage service encryption

State Locking: Azure Blob Storage lease-based locking prevents concurrent Terraform operations from corrupting shared state — only one pipeline stage can hold the state lock at a time. Lock acquisition failures in pipelines are surfaced as actionable errors requiring investigation before retry.

4. Security & Governance Layer

Security controls are embedded throughout the automation platform — not applied as a post-deployment layer.

Azure Key Vault — Pipeline Secret Management:

• All sensitive configuration values stored in Azure Key Vault — database passwords, API keys, service account credentials

• Azure DevOps Key Vault variable group integration retrieving secrets at pipeline runtime without storing them in pipeline variables

• Managed Identity used for Key Vault access from deployed resources — Terraform provisions Managed Identities and Key Vault access policies as part of the infrastructure deployment

Service Connection Security:

• Separate Azure DevOps service connections per environment — production service connection restricted to production resource groups only

• Service connection authentication through Workload Identity Federation (OIDC) — no long-lived service principal secrets required

• Service connection permission scoped to Contributor on specific resource groups — not subscription-level Contributor

RBAC Governance:

• Infrastructure engineers — Contributor on development resource groups, Reader on staging and production

• Senior engineers — Contributor on staging, Reader on production

• Release approvers — no direct Azure access — approve pipelines only

• Production deployments executed exclusively through pipeline service connection — no direct human access to production resource groups

Azure Policy Compliance Enforcement:

Azure Policy operates as an independent compliance enforcement layer — even if Terraform code does not explicitly configure a compliant resource, Policy prevents non-compliant deployments from succeeding. This provides defence-in-depth beyond Terraform code quality alone.

5. Monitoring & Observability Layer

Centralised monitoring provides operational visibility across infrastructure health, pipeline execution, and deployment history.

Azure Monitor & Log Analytics:

• Infrastructure diagnostic settings deployed through the monitoring Terraform module — all resources consistently forward logs to centralised Log Analytics Workspace

• Alert rules for infrastructure health events — VM unavailability, database connectivity failures, VMSS scaling events

• Pipeline deployment events forwarded to Log Analytics through Azure DevOps service hooks — deployment history queryable alongside infrastructure operational events

Grafana — Infrastructure Dashboards:

• Grafana connected to Azure Monitor and Log Analytics as data sources — providing flexible, custom dashboard visualisation beyond Azure Monitor Workbooks

• Infrastructure health dashboard — resource status, performance metrics, and alert summary across all environments

• Deployment activity dashboard — recent pipeline executions, deployment success rates, and environment change frequency

• Cost monitoring dashboard — resource spend tracking aligned to environment and team ownership tags

Deployment Audit Trail:

• Azure DevOps pipeline run history providing complete deployment audit trail — who triggered, what plan was reviewed, who approved, what was applied

• Git commit history providing infrastructure change record — what changed, when, who authored, who reviewed

• Terraform plan output stored as pipeline artifact — reviewable post-deployment for incident investigation

Architecture Diagram

Technologies Used

Key Challenges Addressed

Eliminating configuration drift across environments — addressed through GitOps discipline where all infrastructure changes flow through pull requests and pipeline deployment — direct portal modifications are prevented through RBAC restrictions on production resource groups.

Securing infrastructure deployments in shared cloud environments — addressed through environment-isolated service connections with Workload Identity Federation, separate state backends per environment, and Key Vault-based secret management eliminating credential exposure in pipeline variables.

Managing Terraform state consistency across teams — addressed through Azure Blob Storage remote state with lease-based locking — concurrent pipeline operations cannot corrupt shared state, and state access is restricted through RBAC to authorised service connections.

Balancing deployment automation with governance requirements — addressed through tiered approval model — development deployments are fully automated enabling rapid iteration, while staging and production deployments require human review and approval before execution.

Enforcing compliance-oriented infrastructure standards — addressed through dual enforcement — tfsec and Checkov scan Terraform code before deployment, and Azure Policy enforces compliance at the Azure control plane level independent of code quality.

Improving auditability of infrastructure changes — addressed through combined Git commit history (infrastructure change records), Azure DevOps pipeline history (deployment records), and Terraform plan artifacts (change detail records) — providing complete traceability from code change through approval to deployed infrastructure.

Design Decisions & Rationale

Terraform over Native ARM/Bicep Templates : Bicep has matured significantly as a native Azure IaC language and offers genuine advantages — native Azure resource support without provider version lag, no state file management, and tighter Azure portal integration. Terraform was selected for this architecture for three specific reasons: multi-cloud extensibility (the same Terraform skillset applies if non-Azure services are introduced), ecosystem maturity (provider ecosystem, module registry, testing frameworks), and team familiarity. Bicep is a legitimate alternative for Azure-only environments — the choice is not Terraform vs an inferior option but Terraform vs a strong native alternative with different trade-off profiles.

Separate Environment Directories over Terraform Workspaces : Terraform Workspaces share backend configuration across environments — limiting environment isolation and creating risk of accidental cross-environment operations. Separate environment directories with independent backend configurations provide full isolation — each environment has its own state file, its own backend access controls, and its own variable values. The additional repository structure overhead is justified by the governance and isolation benefits.

Plan Artifact Passing Between Pipeline Stages : Generating a new terraform plan in the Apply stage risks applying different changes than those reviewed during approval — infrastructure state may have changed between Plan and Apply execution. Publishing the plan output as an artifact and downloading it in the Apply stage guarantees the applied plan is identical to the reviewed plan — eliminating plan-to-apply drift as an approval governance gap.

Workload Identity Federation over Service Principal Secrets : Traditional service principal client secret authentication requires secret rotation management and creates exposure risk if secrets are logged or leaked. Workload Identity Federation (OIDC) provides short-lived token-based authentication — Azure DevOps pipeline obtains a federated token for each run without requiring a stored secret. This eliminates service connection credential rotation overhead and removes long-lived secrets from the pipeline authentication model.

tfsec and Checkov in Validation Stage : Azure Policy enforces compliance at deployment time — but a failed deployment wastes pipeline execution time and creates incomplete resource states requiring cleanup. Shifting compliance validation left through pre-deployment scanning catches misconfigurations before Terraform attempts deployment — faster feedback cycles and cleaner failure modes when security issues are detected.

Approval Gates in Azure DevOps Environments : Azure DevOps Environment approval gates provide a structured approval workflow with reviewer assignment, timeout configuration, and audit trail — more controlled than ad-hoc communication or manual deployment coordination. Approval decisions are recorded in the pipeline run history — providing a governance-auditable record of who approved each production deployment and when.

Trade-offs & Design Constraints

Terraform State as Single Point of Failure : Despite remote state providing better reliability than local state, Azure Blob Storage state files remain a dependency — if the storage account is unavailable, Terraform operations cannot acquire the state lock and deployments fail. Storage account availability through LRS or GRS replication reduces this risk, but the dependency remains. Runbook documentation for state recovery scenarios (corrupted state, locked state requiring manual unlock) is essential for operational resilience.

Terraform Workspace Limitations Acknowledged : While this architecture uses separate environment directories rather than workspaces, teams considering workspaces should be aware of key limitations: workspaces share backend configuration making per-environment backend access controls impossible; workspace names are not surfaced prominently in Terraform code creating confusion risk; and workspace-based environment separation requires discipline to prevent accidental operations against the wrong workspace. Separate directories are the recommended enterprise model.

Pipeline Execution Time for Large Infrastructure : As Terraform-managed infrastructure grows, terraform plan execution time increases — plans against large state files with many resources can take 10–20 minutes for complex environments. Long pipeline execution times reduce the iteration speed benefit of IaC automation. Terraform Cloud's remote plan execution with parallel provider calls, or targeted plan operations using -target flags for focused changes, can mitigate plan duration growth — but -target usage introduces its own state consistency risks.

Checkov and tfsec False Positive Management : Security scanning tools generate false positives — flagging configurations that are intentional and appropriate for the specific context. Without baseline configuration or suppression annotation management, false positives accumulate until engineers start ignoring all scanner findings — defeating the purpose. .tfsec/config.yml and checkov baseline files must be maintained to suppress known false positives while preserving genuine finding visibility.

Azure Policy DeployIfNotExists Remediation Timing : Azure Policy DeployIfNotExists effects (used for diagnostic settings enforcement) deploy remediation resources after the primary resource is created — with a delay. Terraform apply may complete successfully before Policy remediation runs — creating a window where resources exist without required configurations. This timing gap means Terraform-applied infrastructure and Policy-enforced configurations may be briefly out of sync after deployment. Terraform should explicitly configure required diagnostic settings rather than relying on Policy remediation for Terraform-managed resources.

RBAC Restriction Side Effects on Developer Productivity : Restricting direct Azure portal access for engineers in staging and production environments improves governance but creates friction when investigating incidents — engineers accustomed to portal-based debugging must work through Log Analytics queries and Grafana dashboards rather than direct resource inspection. Reader access (rather than no access) for senior engineers balances governance with operational investigation capability.

Projected Outcomes

The architecture is designed to deliver the following operational and governance outcomes in a production enterprise environment:

• Consistent infrastructure deployments across development, staging, and production environments through parameterised Terraform modules

• Elimination of configuration drift through GitOps discipline — all changes flow through pull requests and pipeline deployment

• Automated security validation through tfsec and Checkov preventing misconfigured resources from reaching deployment

• Approval-gated production deployments ensuring no unreviewed infrastructure changes reach production

• Complete deployment audit trail through combined Git history, Azure DevOps pipeline records, and Terraform plan artifacts

• Centralised secret management through Key Vault integration — no credentials in pipeline variables or Terraform code

• Independent compliance enforcement through Azure Policy operating beyond Terraform code quality

• Centralised operational visibility through Azure Monitor, Log Analytics, and Grafana across all environments

Future Evolution

• Policy-as-Code integration through OPA/Conftest for Terraform plan validation against custom governance rules before apply

• Automated drift detection through scheduled Terraform plan runs detecting out-of-band resource modifications

• Multi-cloud deployment orchestration extending the same pipeline governance model to AWS and GCP through Terraform provider expansion

• Self-service infrastructure provisioning portal enabling development teams to request pre-approved infrastructure patterns through a governed interface

• FinOps-aware pipeline integration running cost estimation through Infracost before plan approval — surfacing cost impact of infrastructure changes in pull request comments

• GitOps integration with Kubernetes environments through Flux or ArgoCD extending the same Git-driven governance model to application deployment

• AI-assisted infrastructure optimisation through Azure Advisor API integration surfacing rightsizing recommendations in deployment pipelines

• Automated compliance validation through continuous Checkov scanning against deployed infrastructure state rather than only pre-deployment code scanning

Key Takeaways

• Infrastructure-as-Code is an engineering discipline, not just a tooling choice — GitOps governance, module design, state management, and pipeline architecture require the same rigour as application software engineering

• Separate environment directories provide stronger isolation than Terraform Workspaces for enterprise multi-environment governance — workspace limitations create governance gaps that directory-based separation eliminates

• Plan artifact passing between pipeline stages is a critical governance control — applying a regenerated plan rather than the reviewed plan creates an approval bypass vulnerability

• Workload Identity Federation eliminates service principal secret management overhead — OIDC-based pipeline authentication should be the default for new Azure DevOps service connections

• Security scanning (tfsec, Checkov) belongs in the validation stage, not as an optional post-deployment check — shifting compliance validation left reduces deployment failures and provides faster developer feedback cycles

• Azure Policy provides defence-in-depth beyond Terraform code quality — it enforces compliance at the Azure control plane independently of whether Terraform code is correctly written

• False positive management in security scanning tools is an ongoing operational requirement — unmanaged false positives degrade scanner signal quality until findings are systematically ignored
